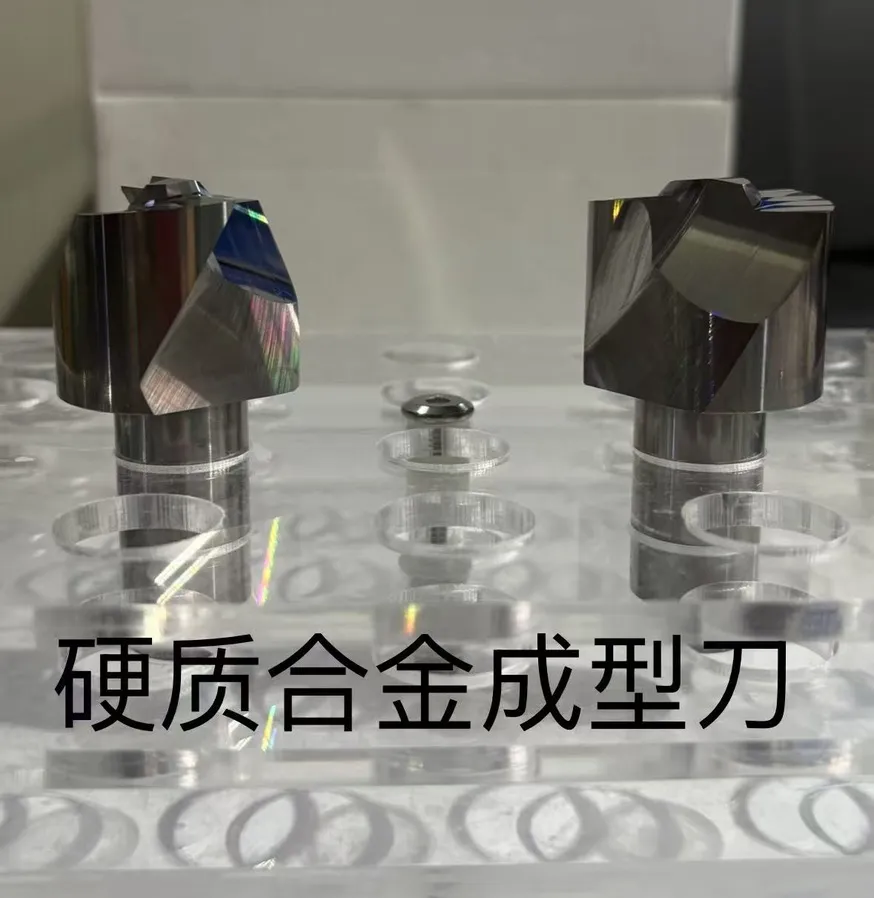

Specialized Custom Forming Carbide End Mills

Standard catalogue end mills cover a large share of metal-cutting work, but real projects often include a non-catalogue feature: a blended transition between two radii, a groove with a drafted wall, a partial arc that cannot be finished cleanly with a ball, or a profile that must be cut in one setup to avoid mismatch between operations. In those situations a forming carbide end mill — ground to a customer-specific section — replaces multiple passes, hand blending, or secondary EDM.

Development starts from a clear 2D section or solid model: we confirm clearance in the pocket, entry direction, and whether the tool can be manufactured and measured repeatably. Shank diameter, overall length, and neck relief are chosen so the form clears the part and fixture while keeping enough core diameter for stiffness. Coating and edge preparation follow the workpiece material — steels, stainless, titanium, aluminium, or exotics each push different wear modes on the form edges.

Manufacturing uses precision CNC grinding with in-process checks and first-article inspection against the agreed profile. For serial production we lock the programme and gauging plan so batch tools match the golden sample; for prototype work we can iterate geometry with the customer until the surface and dimensional report meet the print.

These projects are inherently custom: lead times reflect engineering review, grinding complexity, and coating cycle — not only shipping. If you have a special machining case — mould cavitation, aerospace bracket pockets, fluidic manifolds, or any profile that standard tools cannot finish economically — send the drawing, material and hardness, machine type, and target cycle time. Our applications team in Changzhou will propose a specialized forming carbide end mill aligned to your process.
